产品名称：354884轮廓仪测针
型号：354884
规格：354884
市场价：0.00
优惠价：0.00
点击数：1348
录入时间：2013-01-07 09:56:15
产品简介
日本三丰轮廓测针：用于 CV-1000 和 CV-2000，CV-3100, CV-4100, CV-3000CNC, CV-4000CNC, SV-C3100, SV-C4100, SV-C3000CNC 和 SV-C4000CNC
详细介绍

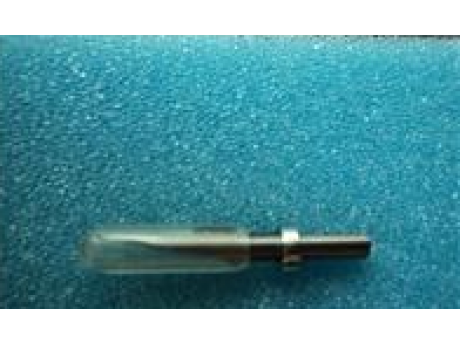

日本三丰轮廓仪测针354884

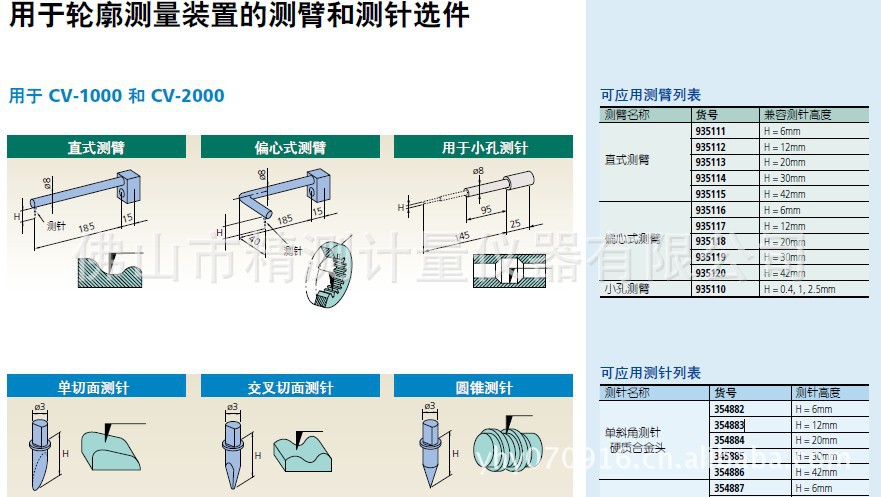

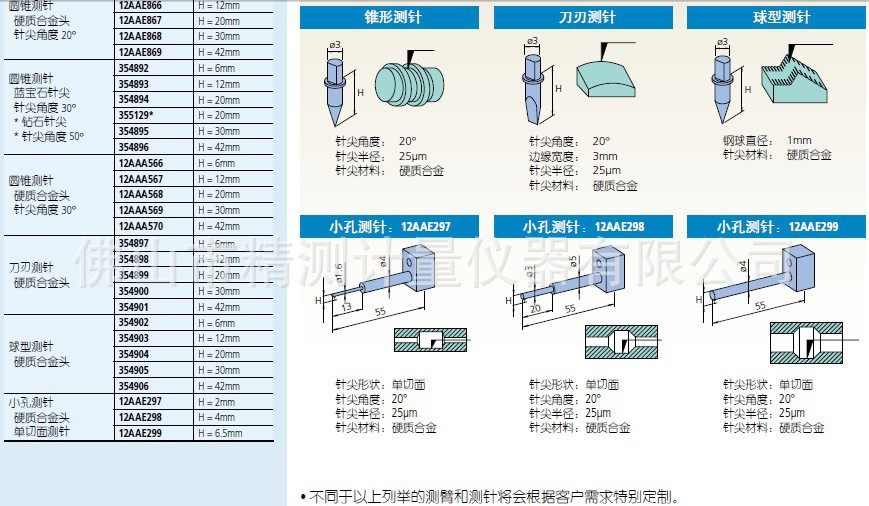

可应用测针列表
三丰轮廓仪测针名称货号测针高度
单斜角测针
硬质合金头
354882 H = 6mm
354883 H = 12mm
354884 H = 20mm
345885 H = 30mm
354886 H = 42mm
交叉切面测针
硬质合金头
354887 H = 6mm
354888 H = 12mm
354889 H = 20mm
354890 H = 30mm
354891 H = 42mm
圆锥测针
硬质合金头
针尖角度20°
12AAE865 H = 6mm
12AAE866 H = 12mm
12AAE867 H = 20mm
12AAE868 H = 30mm
12AAE869 H = 42mm
圆锥测针
蓝宝石针尖
针尖角度30°
* 钻石针尖
* 针尖角度50°
354892 H = 6mm
354893 H = 12mm
354894 H = 20mm
355129* H = 20mm
354895 H = 30mm
354896 H = 42mm
圆锥测针
硬质合金头
针尖角度30°
12AAA566 H = 6mm
12AAA567 H = 12mm
12AAA568 H = 20mm
12AAA569 H = 30mm
12AAA570 H = 42mm
刀刃测针
硬质合金头
354897 H = 6mm
354898 H = 12mm
354899 H = 20mm
354900 H = 30mm
354901 H = 42mm
球型测针
可应用测针列表
三丰轮廓仪测针名称货号测针高度
单斜角测针
硬质合金头
354882 H = 6mm
354883 H = 12mm
354884 H = 20mm
345885 H = 30mm
354886 H = 42mm
交叉切面测针
硬质合金头
354887 H = 6mm
354888 H = 12mm
354889 H = 20mm
354890 H = 30mm
354891 H = 42mm
圆锥测针
硬质合金头
针尖角度20°
12AAE865 H = 6mm
12AAE866 H = 12mm
12AAE867 H = 20mm
12AAE868 H = 30mm
12AAE869 H = 42mm
圆锥测针
蓝宝石针尖
针尖角度30°
* 钻石针尖
* 针尖角度50°
354892 H = 6mm
354893 H = 12mm
354894 H = 20mm
355129* H = 20mm
354895 H = 30mm
354896 H = 42mm
圆锥测针
硬质合金头
针尖角度30°
12AAA566 H = 6mm
12AAA567 H = 12mm
12AAA568 H = 20mm
12AAA569 H = 30mm
12AAA570 H = 42mm
刀刃测针
硬质合金头
354897 H = 6mm
354898 H = 12mm
354899 H = 20mm
354900 H = 30mm
354901 H = 42mm
球型测针
